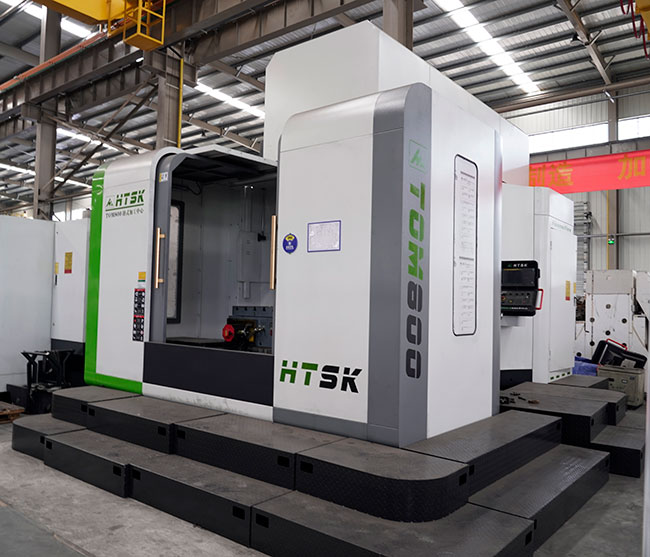

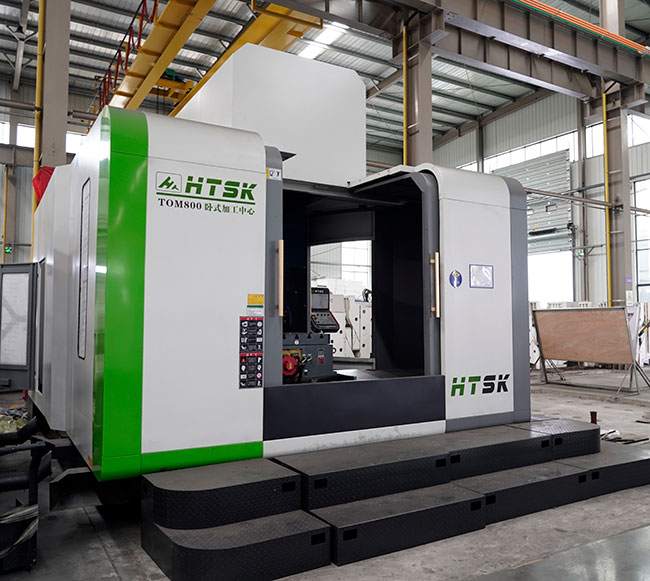

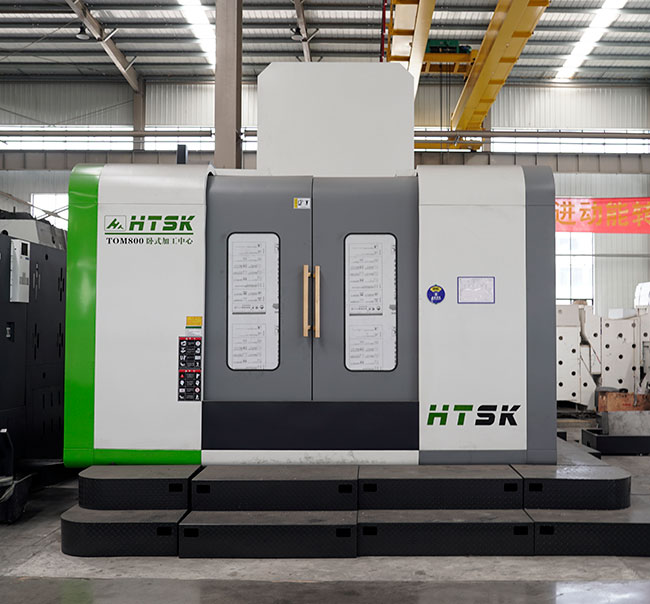

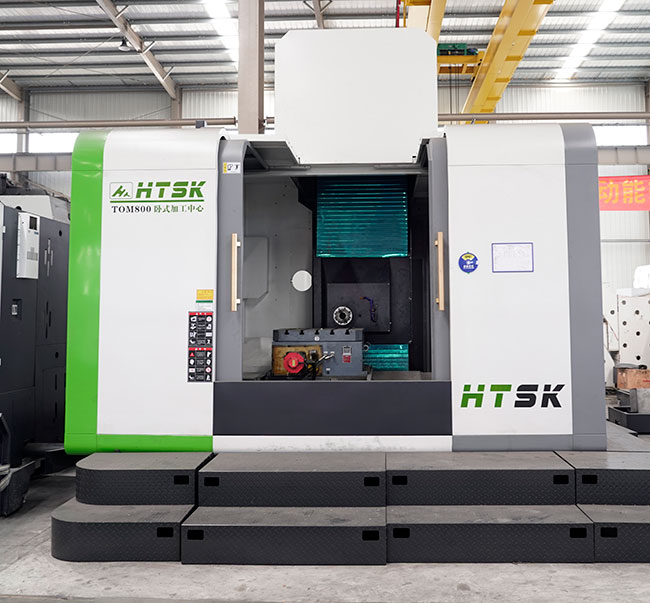

TOM800卧式加工中心

发布时间:2025-05-24 11:27:58人气:
  • TOM800卧式加工中心
  • 800卧加
  • 卧式加工中心厂家
  • 800卧式加工中心图片

TOM800卧式加工中心结构:

  1.床身采用倒T型结构,重心低且底座宽大,提升了机床的整体刚性和抗震性,尤其适合重切削和大扭矩加工。

  The bed adopts inverted T-shape structure with low center of gravity and wide base, which improves the overall rigidity andvibration resistance of the machine, especially suitable for heavy cutting and high torque machining.

  2.主轴水平放置(卧式),配合自动换刀系统(如链式刀库),可实现多面连续加工,减少工件装夹次数,提高效率。

  The spindle is placed horizontally (horizontal), together with the automatic tool change system (such as chain tool changer)it can realize multi-face continuous machining, reduce the number of workpiece clamping times and improve efficiency.

  3.采用高刚性线性导轨或贴塑导轨,搭配预拉伸滚珠丝杠,确保长时间加工中的定位精度(通常可达士0.005mm以内)。

  Adoption of high rigidity linear guideway or plasticized guideway with pre-tensioned ball screw ensures positioning accuracy(usually within +0.005mm) during long time machining.

TOM800卧式加工中心参数:

TOM800



数控工作台规格

工作台面积 800 mm´800mm

X坐标行程

1400mm

Y坐标行程

900mm

Z坐标行程

1200mm

主轴中心线到工作台面距离

0-900mm

主轴鼻端至工作台中心距离

150-1350mm

X重载线轨

两条滚柱强力线轨

线轨直径55mm

线轨滑座加宽加大

Y重载线轨

三条线轨

结构支撑为:两条主承载线轨

一条支撑线轨

两条线轨直径65mm滚柱

一条线轨直径55mm滚珠

Z重载线轨

四条线轨

结构支撑为:两条主承载线轨

两条支撑线轨

两条线轨直径65mm滚柱

两条条线轨直径55mm滚珠

XY丝杠

Φ55mm

Z丝杠

Φ63mm

X、Y、Z切削进给量

1~6000 mm/min

X、Y快速进给速度

15m/min

Z快速进给速度

12m/min

主轴转速范围

50~6000 r/min

主轴锥孔

BT50φ190mm

数控系统FANUC

日本发那科

主轴电机

15/18.5KW

重复定位精度

300mm/±0.005mm

定位精度

300mm/±0.0075mm

使用源气压力

0.6-0.8 MPa

机床轮廓尺寸(L×W×H)

6100x5900x4000mm

整机重量(约)

21000kg
